Shangqiu Sihai Energy Technology Co., Ltd.
2 Years
| Ask Lasest Price | |
| Brand Name : | Sihai |
| Supply Ability : | 200 Set/Sets per Year |
| Price : | $45,000.00/sets >=1 sets |
Pyrolysis Oil Tire Recycling Machine With High Oil Yield
The Raw Material Can be used in Used Tyre Pyrolysis Machine :
Handling Capacity of Oil Pyrolysis plant in different models:
| Model | Reactor size | Material | Handling capacity | Weight | Seaworthy packing |
| LJ-8 | 2200*6000mm | Q245R boiler steel ,16mm thickness | 5 tons | 24tons | 2*40HQ |
| LJ-9 | 2200*6600mm | Q245R boiler steel ,16mm thickness | 8tons | 26tons | 2*40HQ |
| LJ-10 | 2600*6600mm | Q245R boiler steel ,16mm thickness | 10tons | 30tons | 1*40FR+1*40HQ |
| LJ-12 | 2800*6600mm | Q245R boiler steel ,18mm thickness | 12tons | 32tons | 1*40FR+1*40HQ |
| LJ-15 | 2800*7700mm | Q245R boiler steel ,18mm thickness | 15tons | 40tons | 1*40FR+1*40HQ |
Working process of the pyrolysis oil production line:
First, the raw materials(tire/tyre /plastic/ rubber) are put into
the pyrolysis reactor, and then seal the feeding in door, later
start the machine and the reactor will be rotating and heated by
coal, natural gas, wood or electricity. When the temperature
reaches the degree of 250 to 280, we will get the crude oil, the
oil steam will be continuous produced until the temperature reaches
350-460°C; oil steam will flow through oil gas separator, light
component will enter the condensers and meanwhile the heavy oil
will be discharged automatically into in heavy oil tank. The
liquefied part will be condensed as crude oil, and the part which
cannot be liquefied will be transferred by the water seal back to
the burning chamber to be reused as heating material.

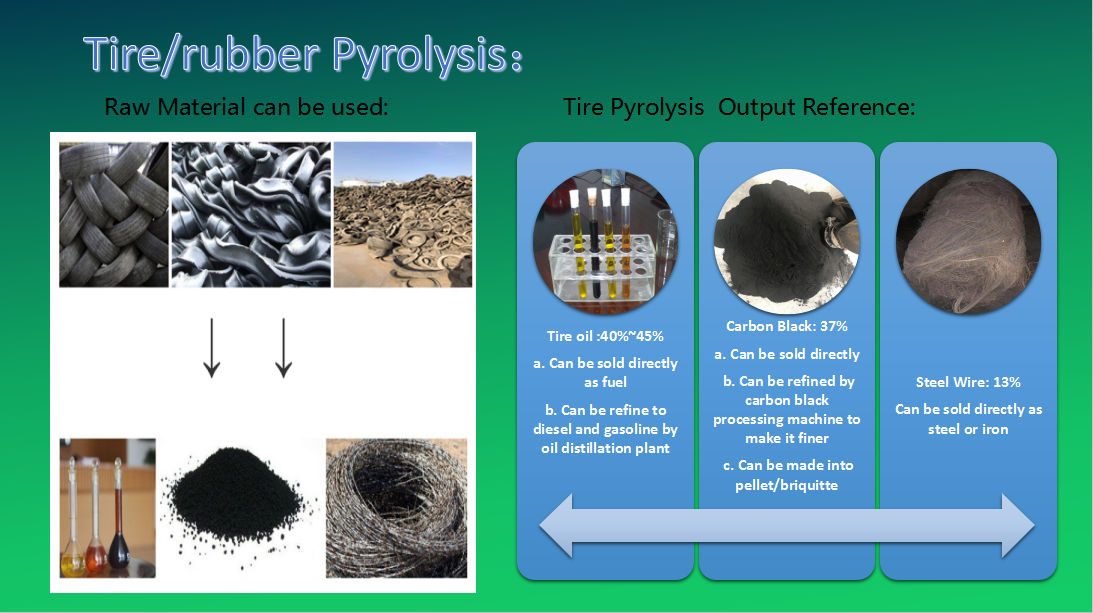

End of Product from Waste Tire To Diesel Oil Refining Machine:
NO. | Name | Percentage | Usage |
1 | Tyre oil | 40%~45% | * can be sold directly as fuel. * can be refine to diesel and gasoline by oil distillation plant |
2 | Carbon black | 37% | * can be sold directly. * can be refined by carbon black processing machine to make it finer (1500mesh finer). *can be made into pellet by pellet machine |
3 | Steel wire | 13% | *can be sold directly as steel or iron. |
4 | Waste gas | 5% | * can be recycled to heat up the reactor |
Tire To Oil Production line Installation: Free of charge
installation guidance:
Tire oil recycling machine Exporting Experience:
America: | Brazil, Canada, Colombia, USA, |
Middle East: | Dubai, Jordan, Saudi Arabia, Turkey |
Europe: | Albania , Bosnia and Herzegovina |
Asia: | Afghanistan, India, Malaysia, Pakistan, Philippines, South Korea, Vietnam, Myanmar, Thailand |
Africa: | Ghana, Mozambique, Zambia |
|
|
